Roland V31 Electronic Drum Module

Shipping January 2026. Taking preorders now.

The Roland V31 electronic drum module offers a streamlined alternative to the V71 and V51 modules, succeeding the TD-17 with the same advanced sound engine and editing features as the flagship V71 introduced last October. It’s the first Roland module to deliver flagship-grade sound quality and triggering at a more accessible price point. The V31 features multi-layered sampled DW kits, 32-channel USB audio recording, a wide array of built-in effects, user sample import capability, a vibrant 4.3-inch color display, three digital inputs, master left/right outputs plus two direct outputs, ultra-low latency, and the reliability and intuitive interface Roland is known for.

• Drum Kits - 200 (Preset: More than 70)
• Instruments - More than 1,000
• Effect Types Layer Transient: each layer, Layer Equalizer: each layer, Pad Equalizer: each pad (by head and rim), Pad Compressor: each pad (head and rim common)
• Overhead Mic Simulator, Room/Reverb/Kit Resonance, Bus Effect: 4 systems (two can be used simultaneously per system/with side chain function), 94 types, Bus Reverb, Master Compressor, Master Equalizer
• User Sample Import - Number of User Sample: Maximum 500 (includes factory preloaded user samples), Sound Length (total): 24 minutes in mono, 12 minutes in stereo, File formats that can be loaded: WAV (44.1 kHz, 16/24 bits)
• Song Player (SD card) - Audio File: WAV (44.1 kHz, 16/24 bits), MP3
• Recorder - Recording Method: Realtime, Maximum Note Storage: approx. 40,000 notes, Export File Format: WAV (44.1 kHz, 16 bits), SMF, or
• Recording Method: Realtime, Maximum length: 60 min (temporary recording: 1 min) (*1), File format: WAV (44.1 kHz, 16 bits)
• Display: Graphic color LCD 4.3 inch
• External Memory - SD card (SDHC supported)

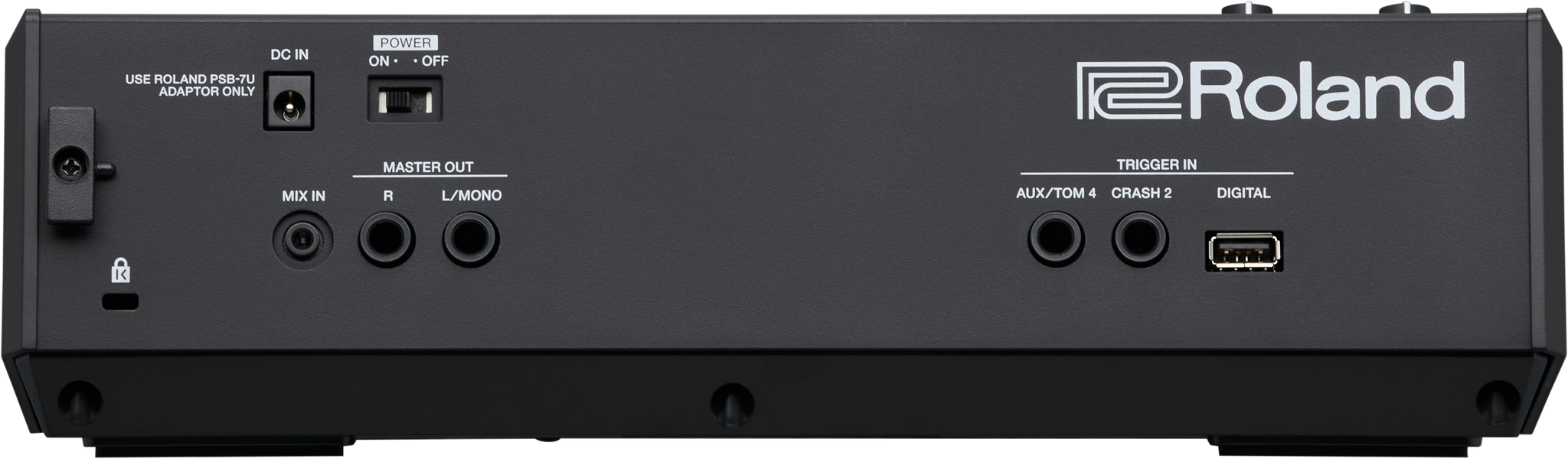

• Connectors: TRIGGER INPUT connector x 1: DB-25 type (Kick, Snare, Tom1, Tom2, Tom3, Hi-hat, Crash1, Ride, Ride Bell, Hi-Hat Control) (Exclusion use with digital pad) - TRIGGER IN jack x 2: 1/4-inch TRS phone type (CRASH 2, AUX/TOM 4), DIGITAL TRIGGER IN port x 1: USB A
• MASTER OUT jacks (L/MONO, R): 1/4-inch phone type, unbalanced
• PHONES jack x 1: Stereo miniature phone type
• MIX IN jack x 1: Stereo miniature phone type
• MIDI OUT connector
• USB COMPUTER port: USB Type-C(R) (Class Compliant for Audio and MIDI/ Roland driver for Audio and MIDI)
• Number of USB Audio Record/Playback Channels, Record: 30 channels, Playback: 32 channels
• Built in Recorder 2 channels - save to SD Card as a .wav file
• Power Supply, AC adaptor-Current Draw 1,100 mA, Power consumption when in off mode (when the power automatically turns off), 0.24 W
• Dimensions: 316 (W) x 246 (D) x 97 (H) mm, 12-1/2 (W) x 9-11/16 (D) x 3-7/8 (H) inches
• Weight: 2.2 kg, 4 lbs 14 oz
